ChatFlux

A walkthrough of how people sign in, message each other and manage groups, starred messages, sessions and notifications.

1. 01

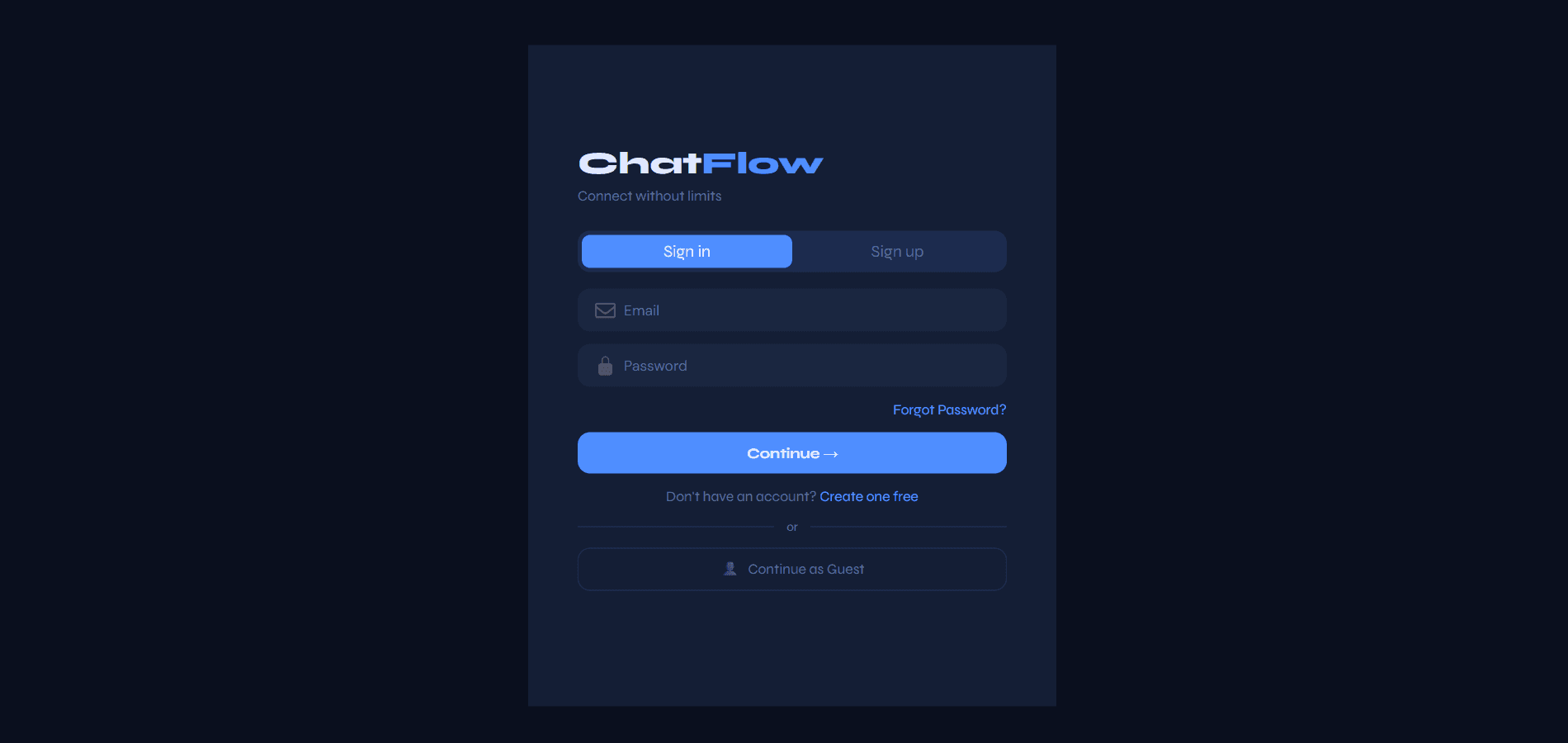

   Sign in or continue as guest

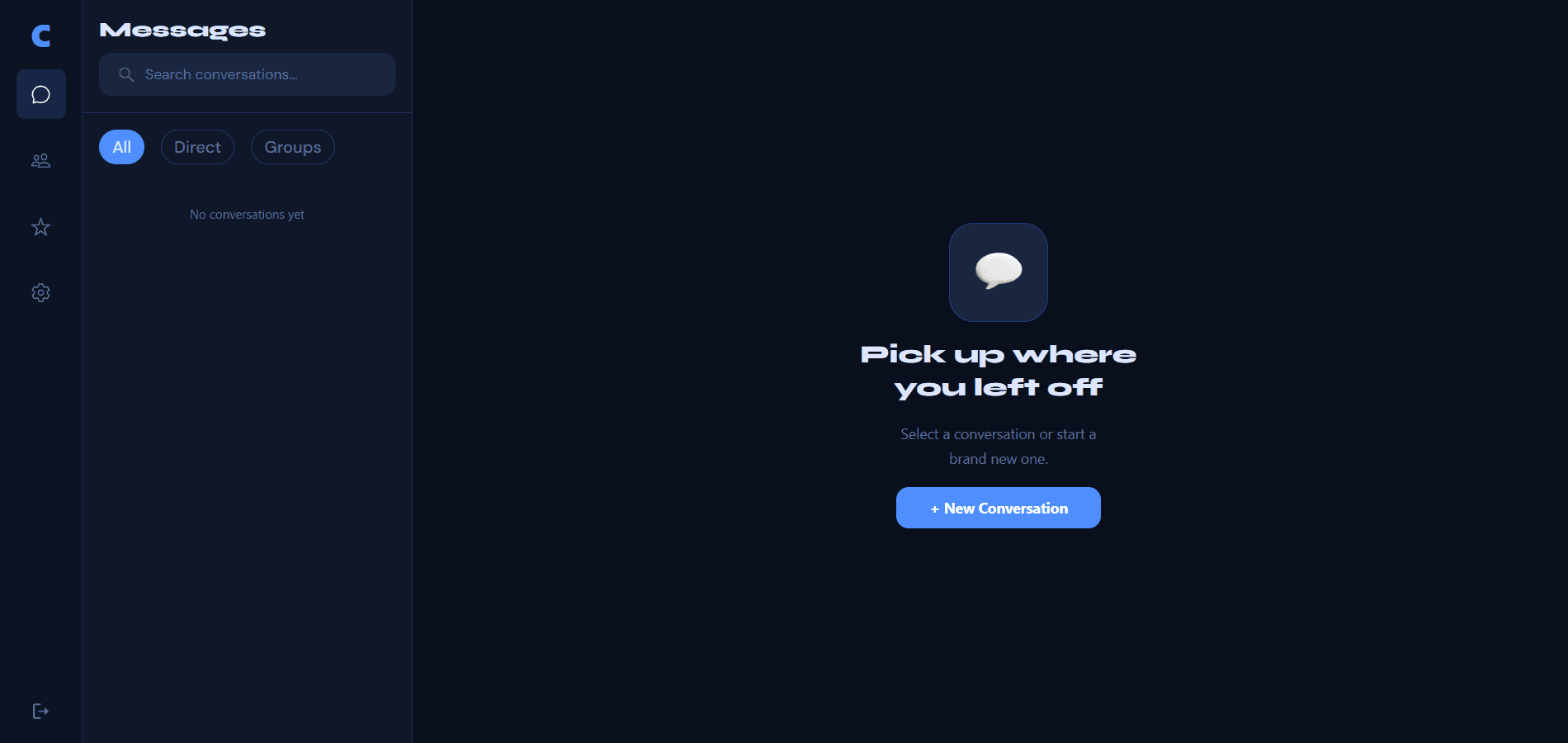

   Email and password auth covers sign up, sign in and forgot password with a timed reset link. Continue as Guest opens the full app without signup friction. Guest users and their rooms, messages and sessions are removed on logout so the sandbox stays temporary.





2. 02

   Find conversations quickly

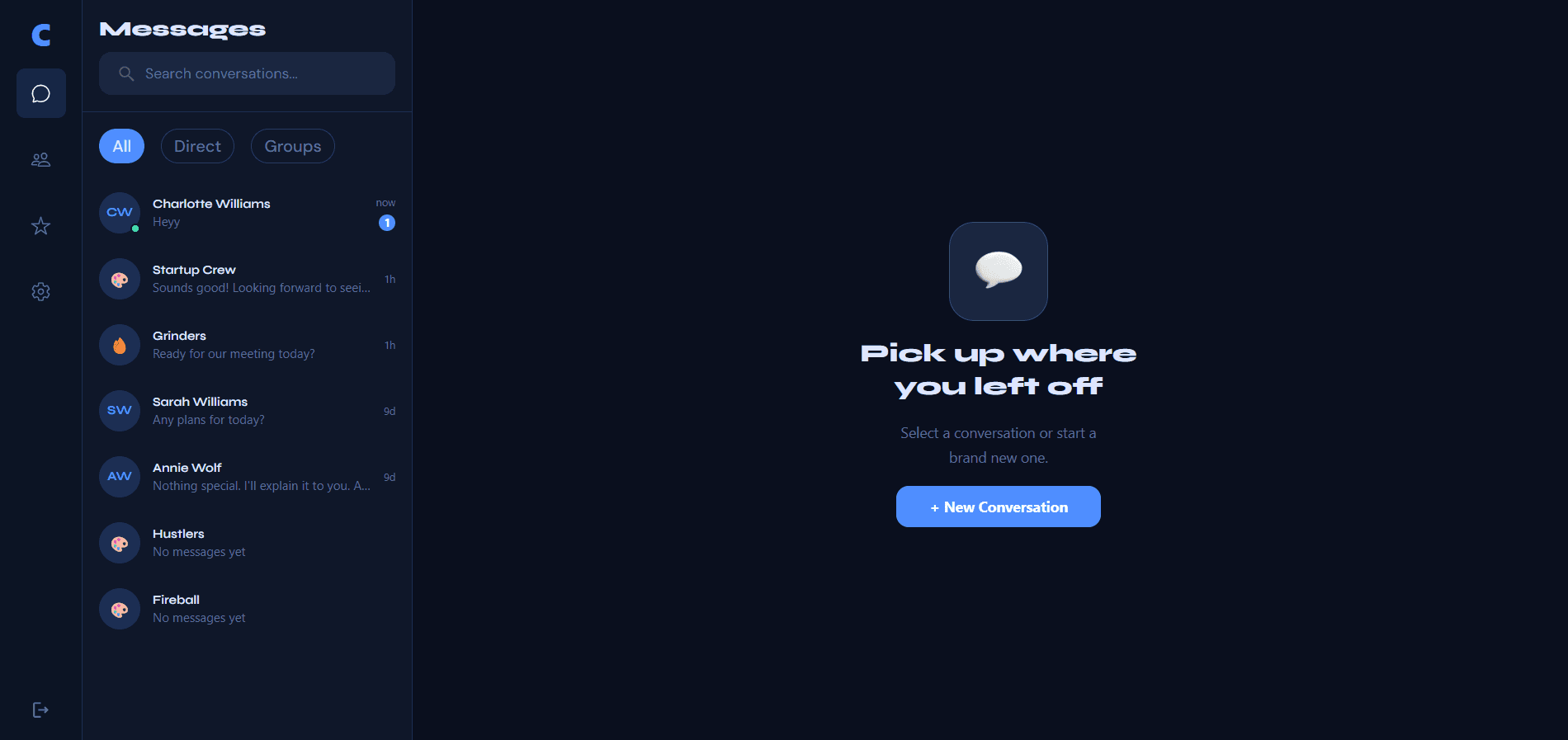

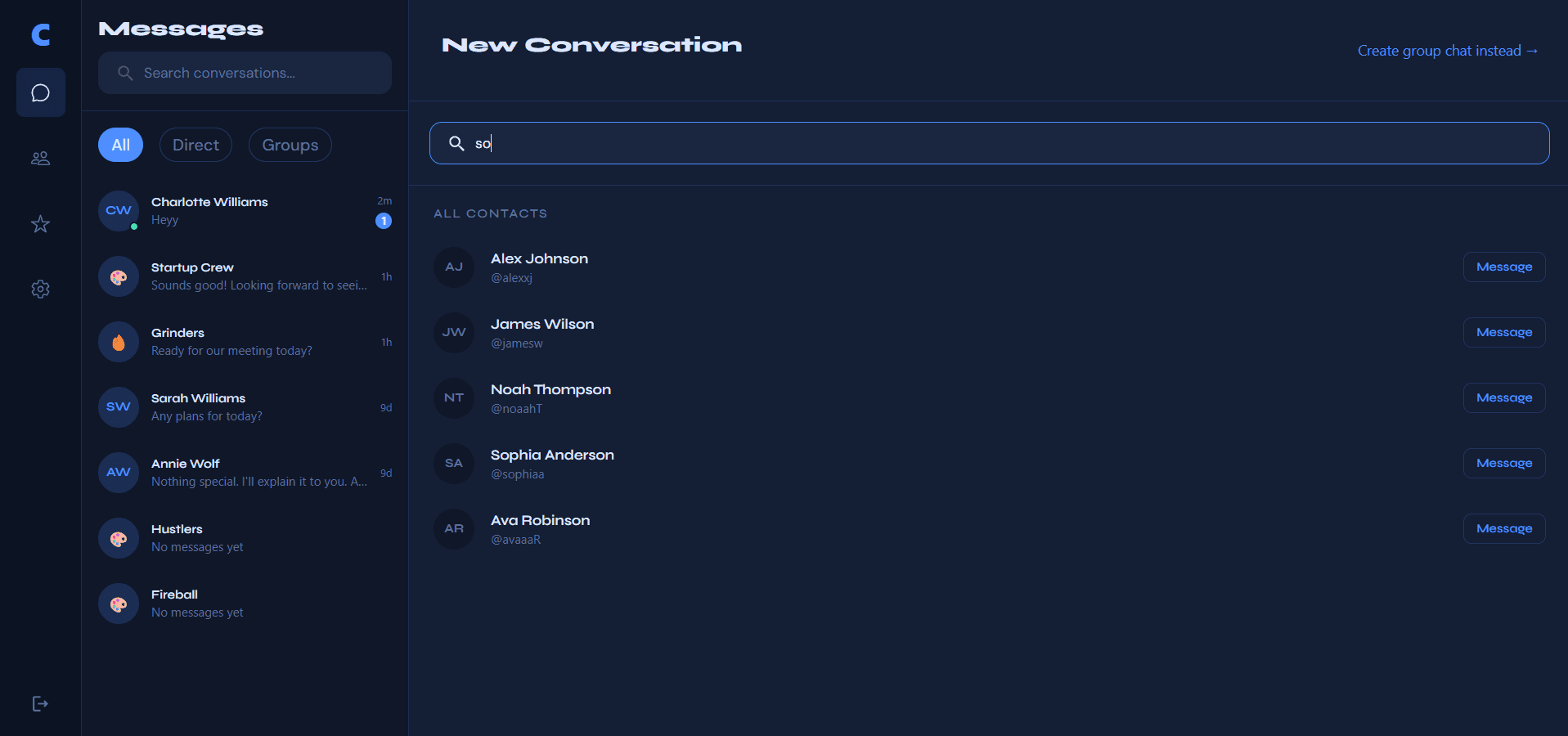

   The conversation list shows last message previews, timestamps and unread badges. Search filters by name or username. All / Direct / Groups chips narrow the list. Empty states and a search to start a new conversation make it clear how to begin chatting.





3. 03

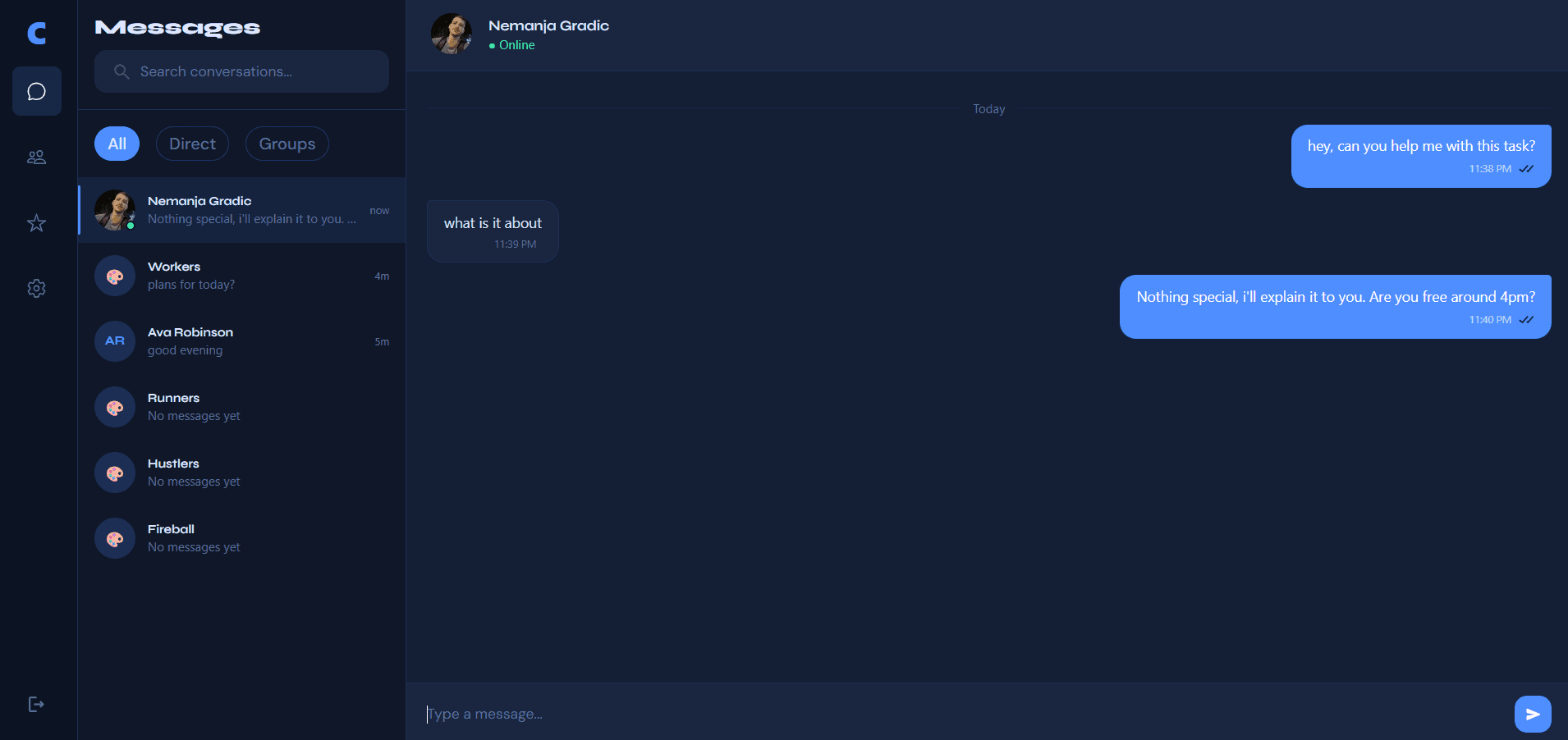

   Direct messages with real receipts

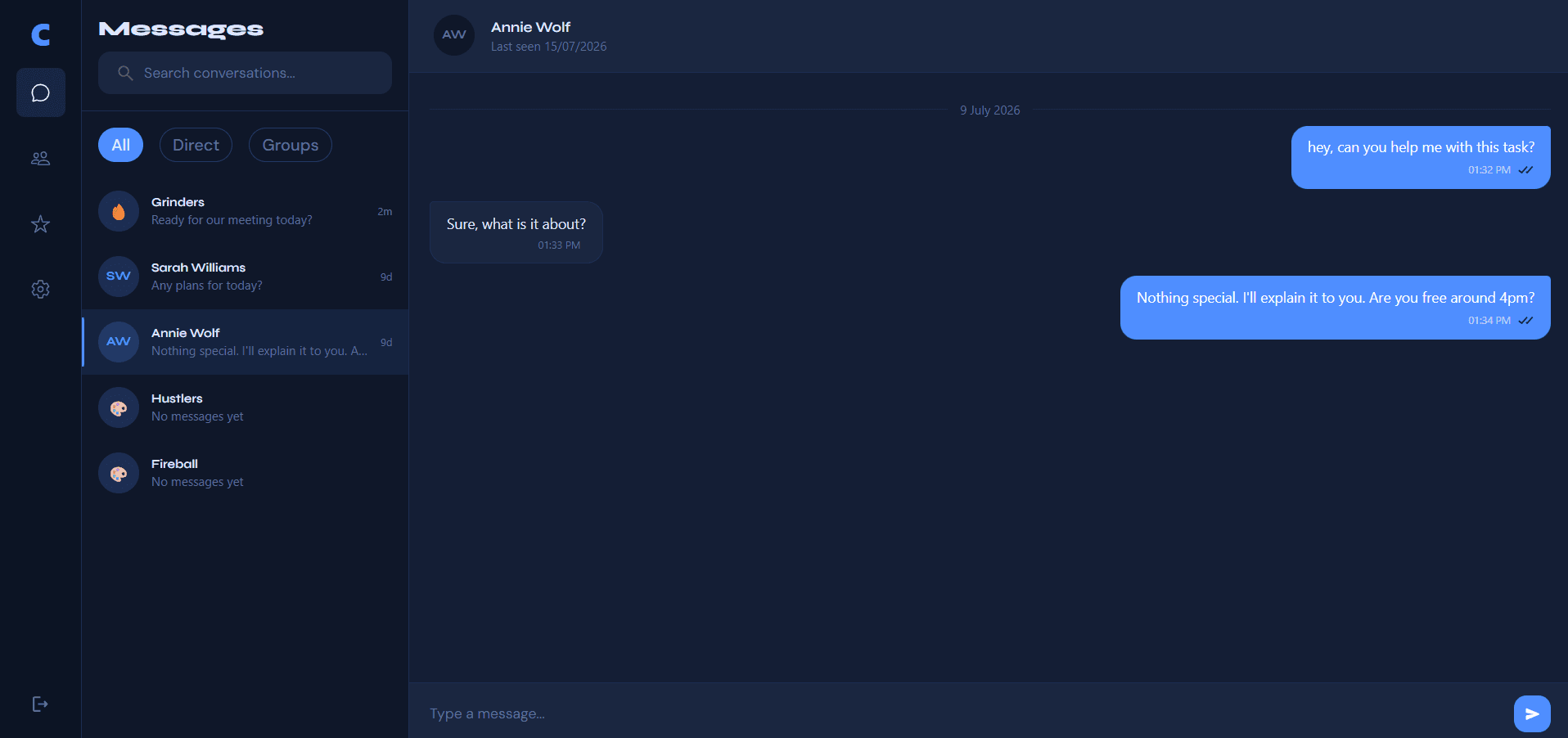

   Direct chats run over Socket.io with rooms created lazily on the first message. Messages group by date and receipts move from sent to delivered to read based on whether the recipient is online and currently in that room. When someone opens a chat, their unread messages are marked as read and the sender sees the receipt change live.



4. 04

   Group chats

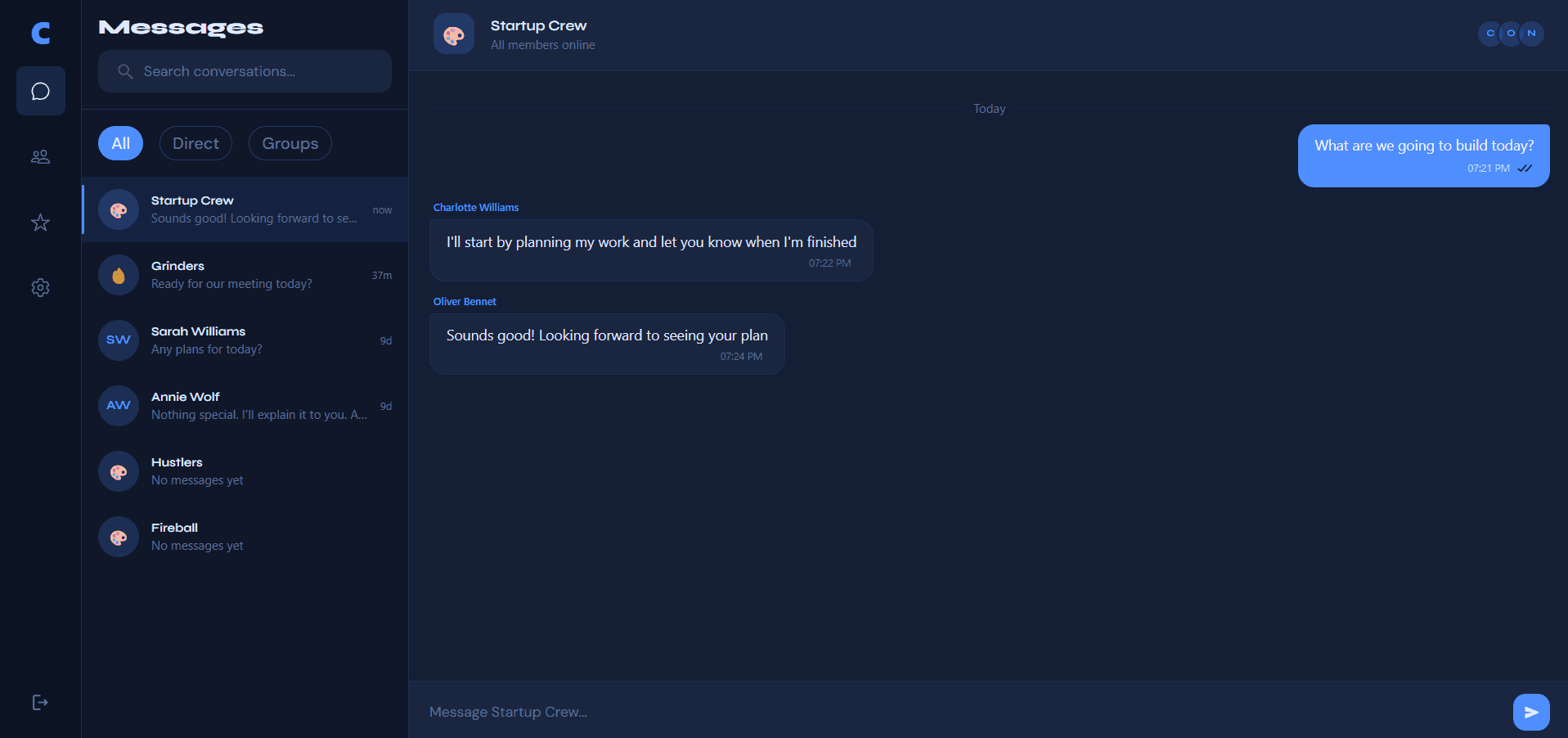

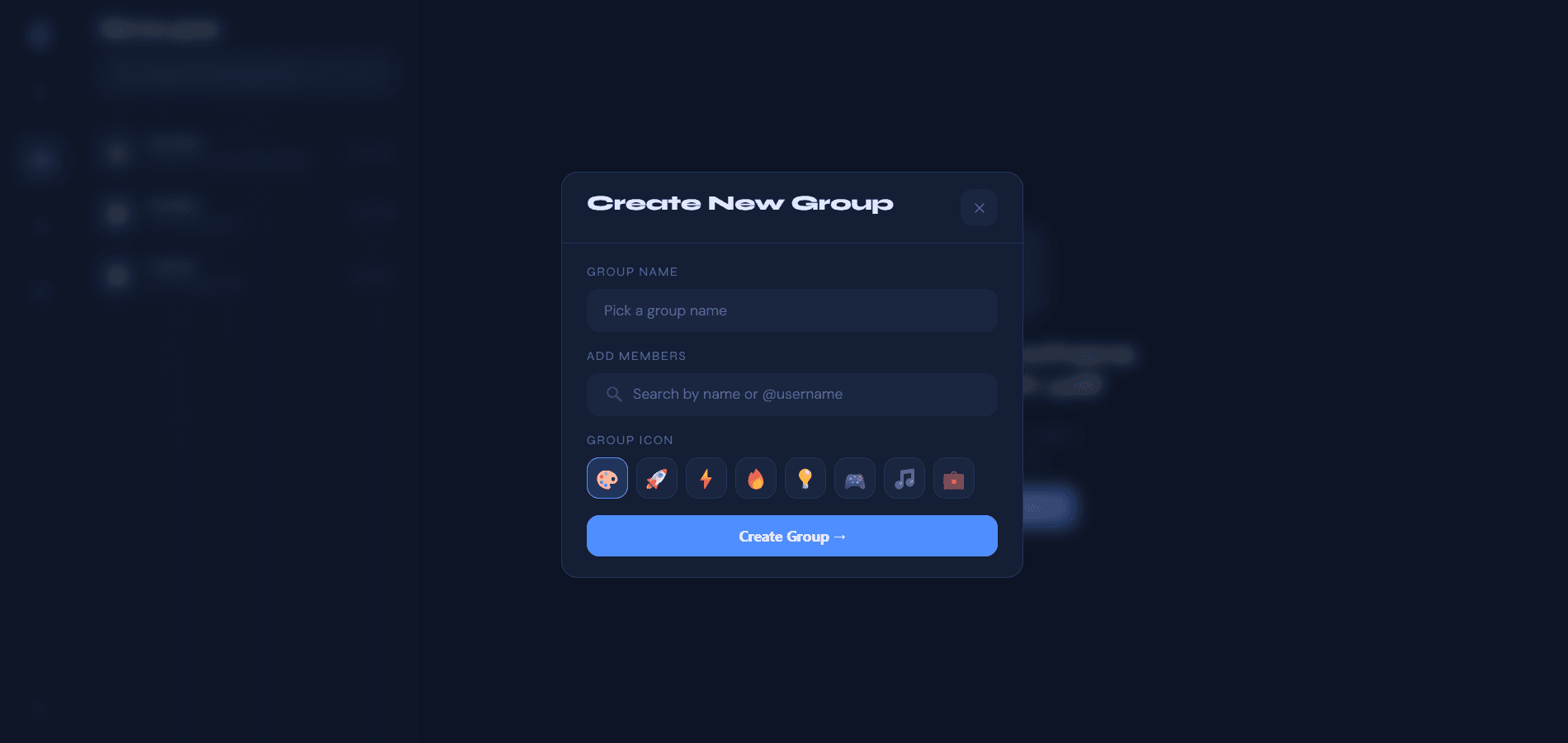

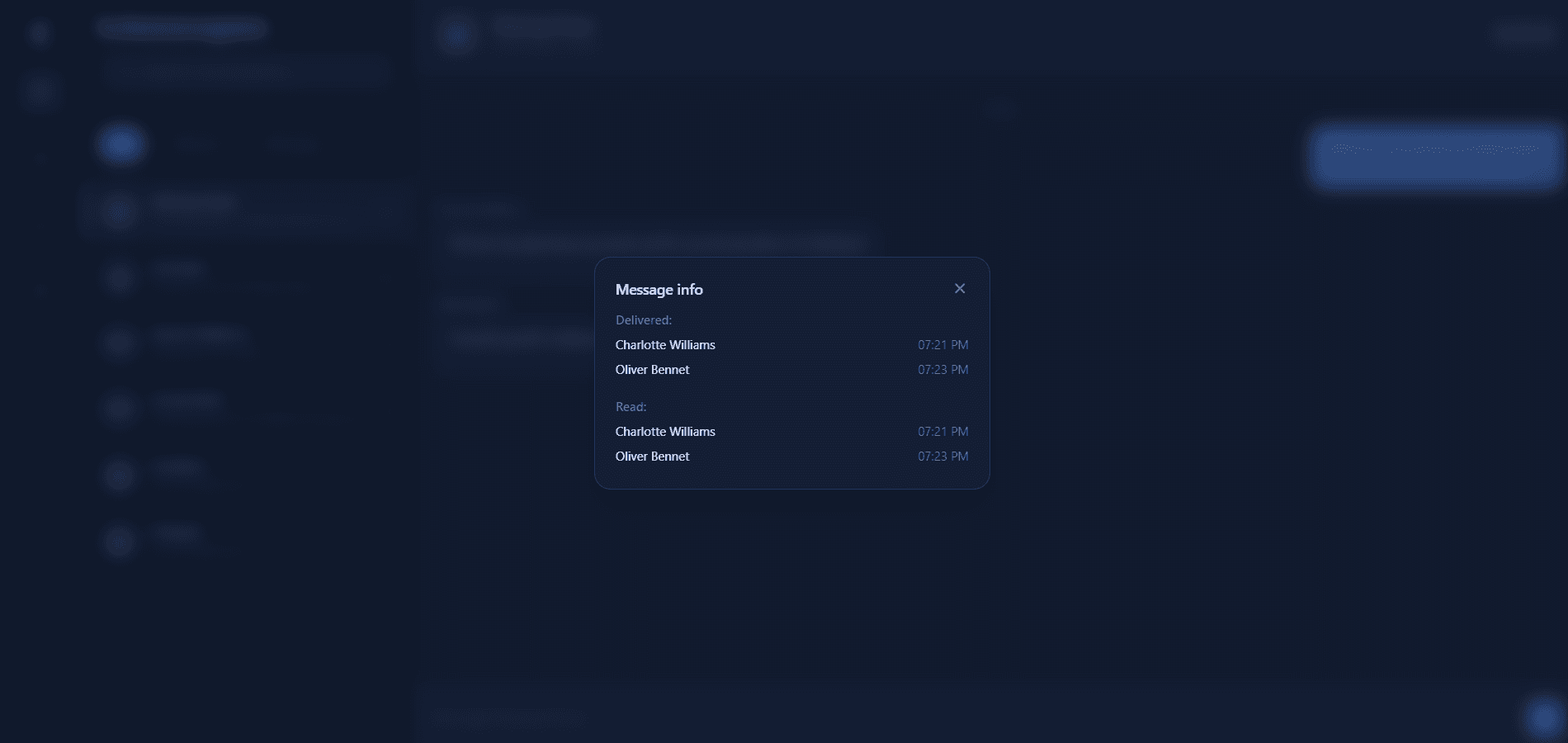

   Groups support a custom name, emoji icon and a picker to add members. In the chat header you can see who is online and the members in the group. Other people's messages show their name above the bubble. Receipts track delivered and read times for each member so partial versus full delivery is clear. Message info shows exactly who received and read a message and when.







5. 05

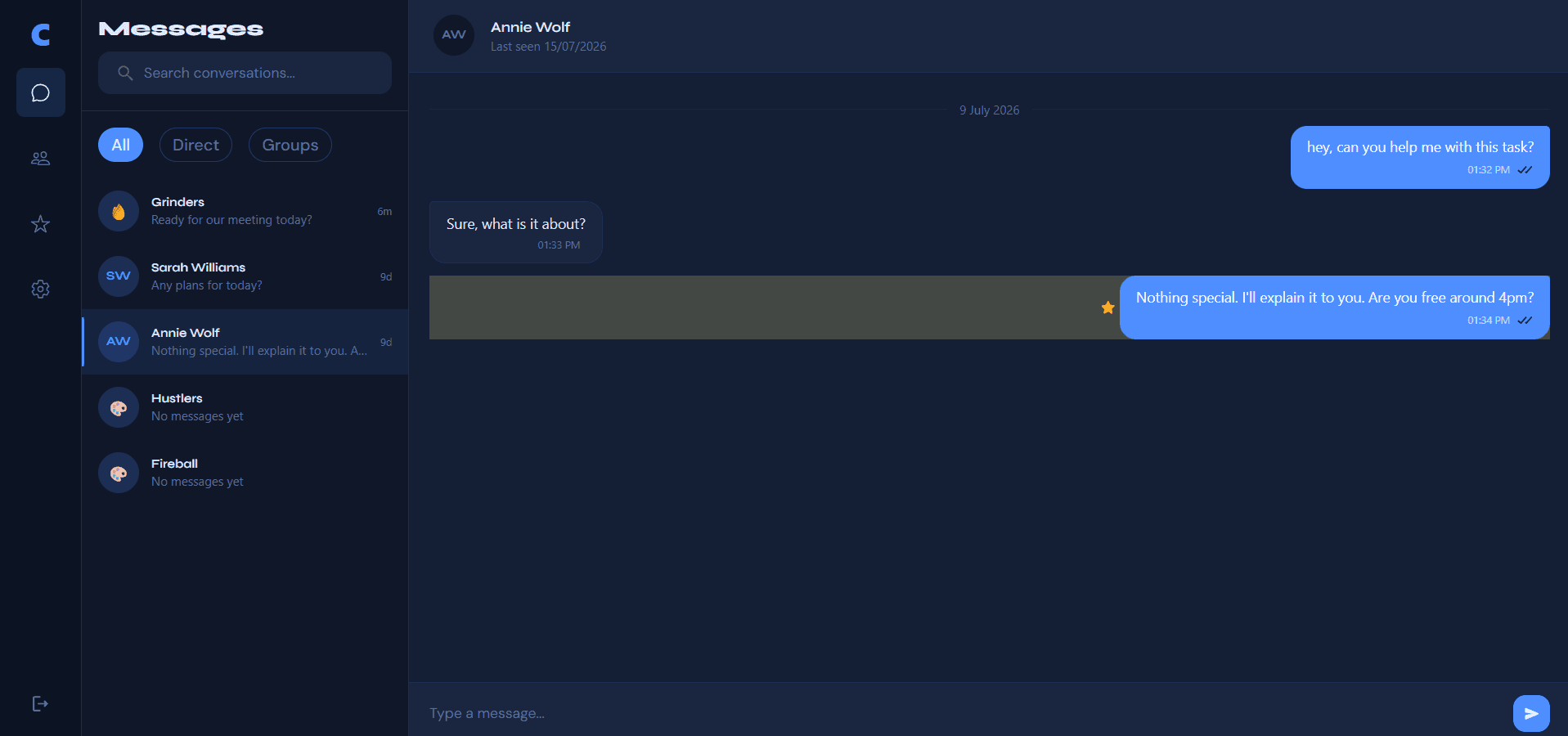

   Starred messages

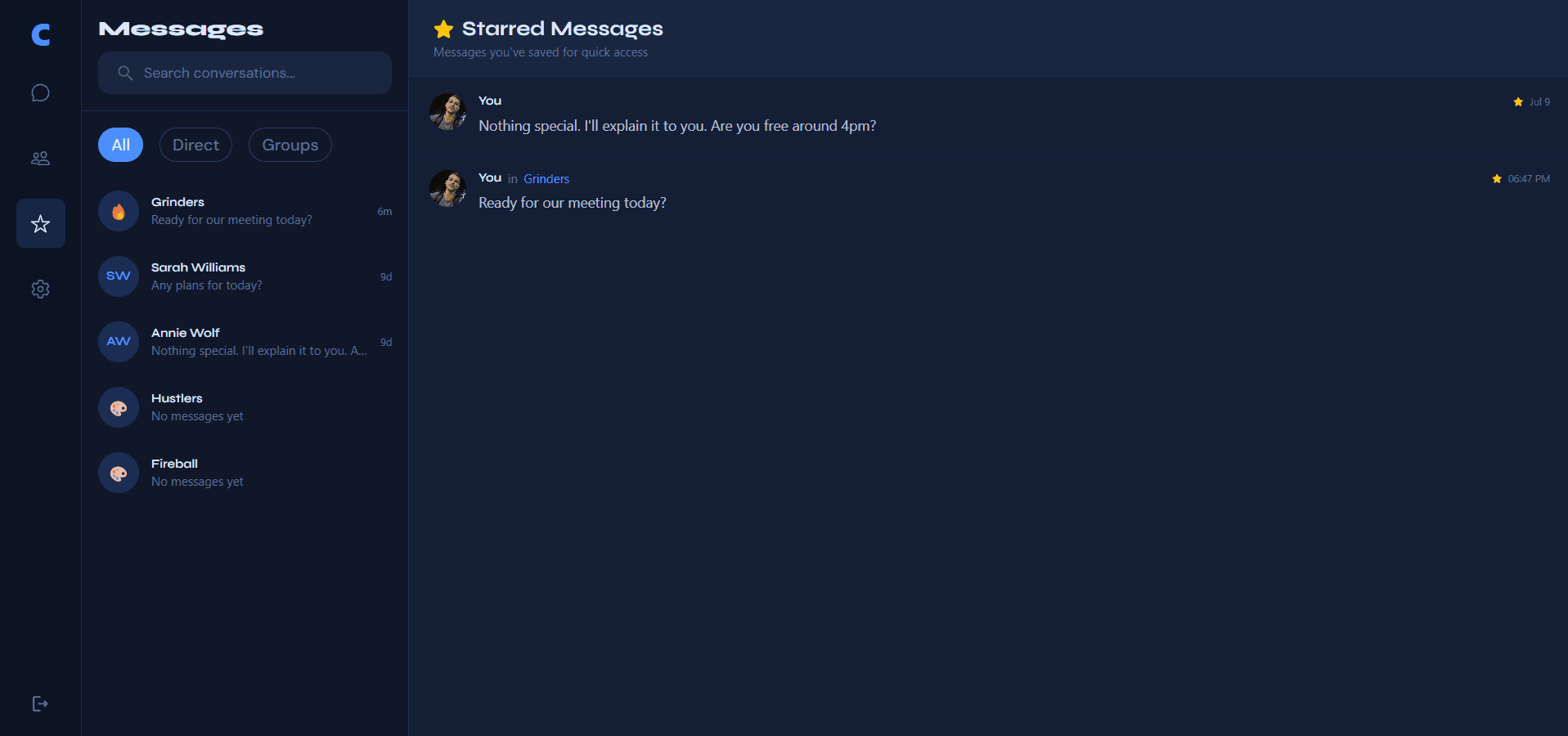

   Anyone can star messages for themselves. A dedicated Starred page lists them and opening one jumps back to the original conversation with the message highlighted so it is easy to find again.





6. 06

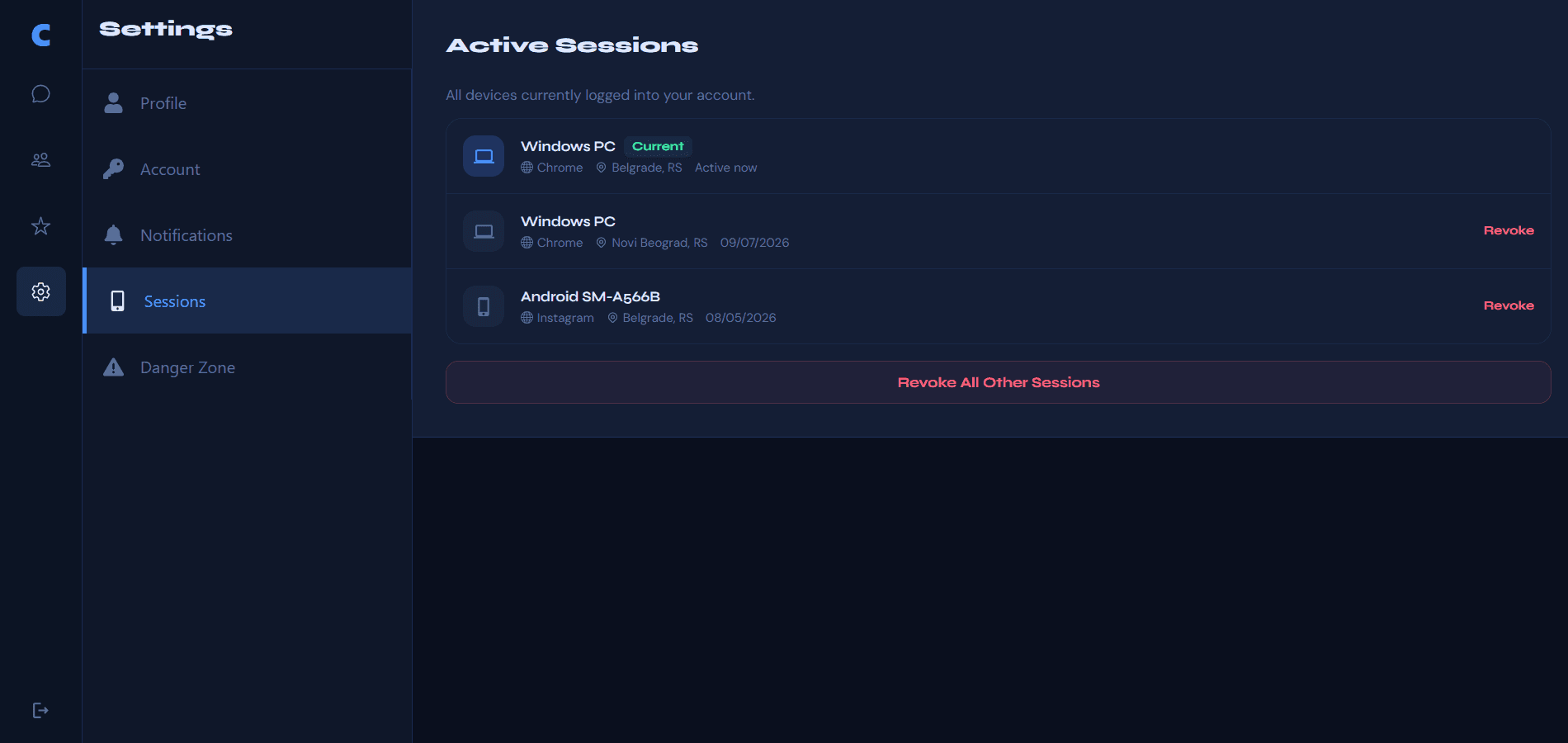

   Sessions across devices

   Active sessions list browser, device, OS, location and last used time, with a badge on your current session. Users can revoke one session or all other sessions.



7. 07

   Profile and notification controls

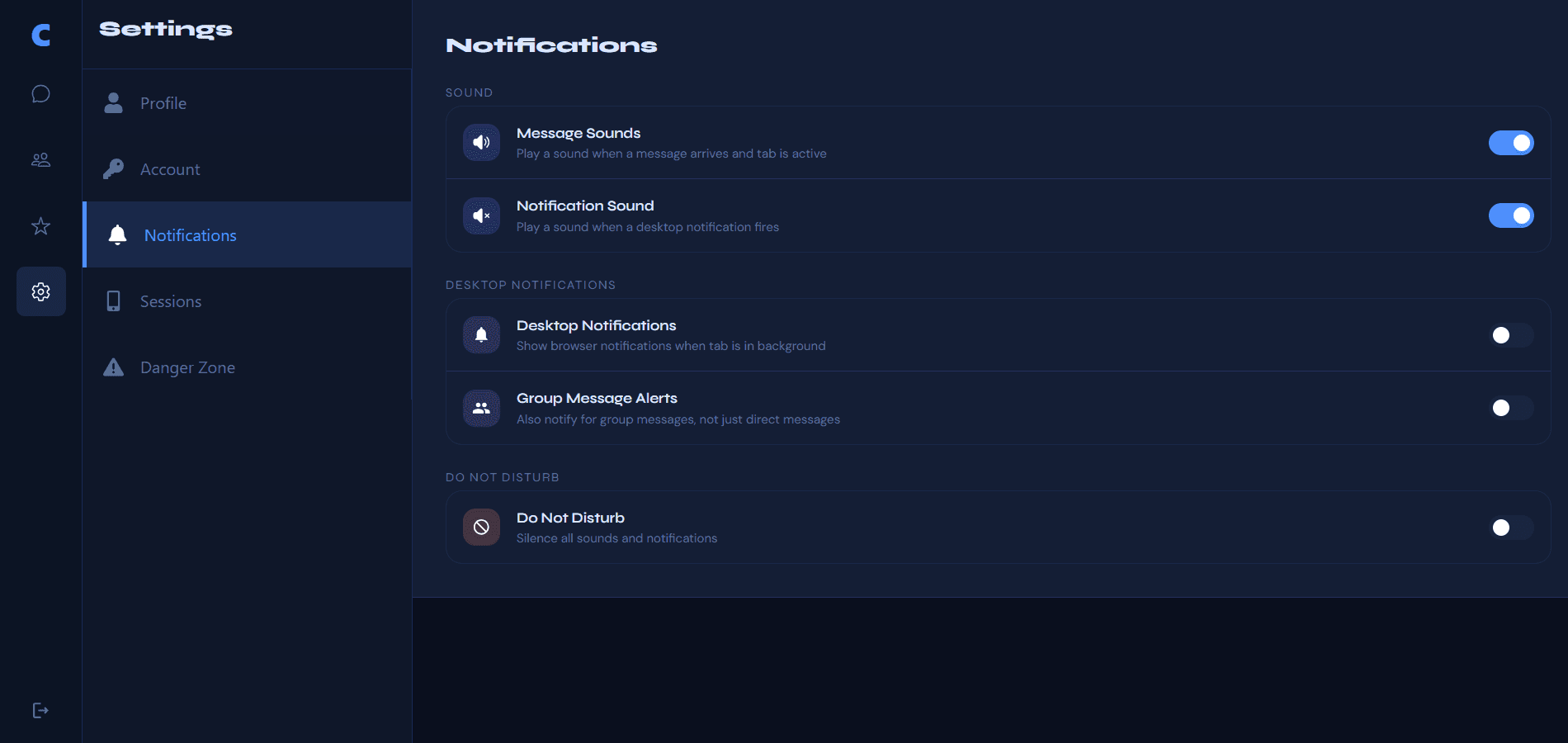

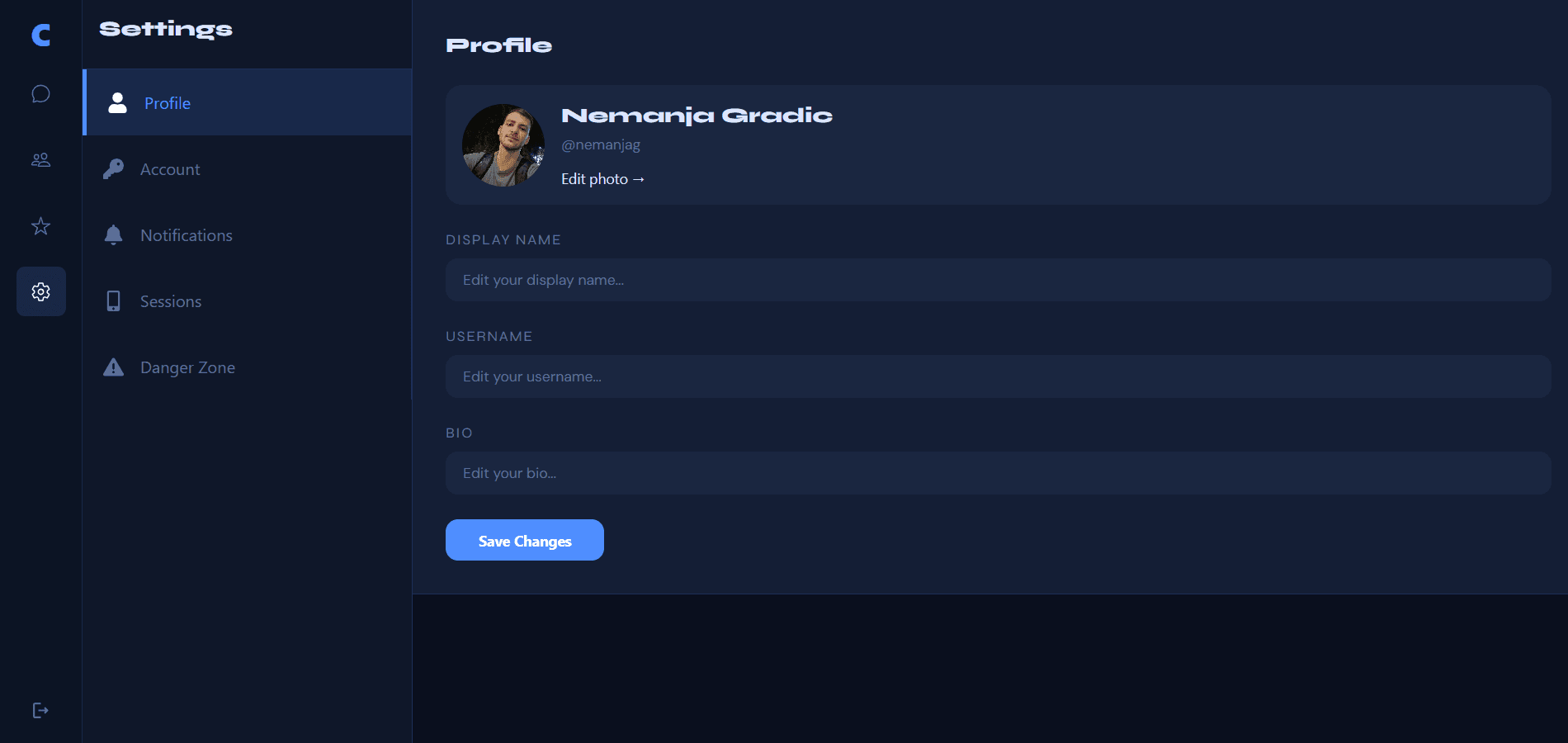

   Profile settings cover name, username, bio and Cloudinary photo. Notification preferences control message sounds, background notification sound, desktop push, group alerts and do not disturb so alerts stay useful instead of noisy.





ChatFlux runs on a custom Node HTTP server that serves Next.js and Socket.io in the same process, backed by MongoDB for users, sessions, rooms and messages. Avatars go through Cloudinary, transactional email through Resend and the app deploys on Railway with a compiled server entrypoint.

• One process for Next.js and Socket.io

  A custom Node server wraps the Next.js app and attaches Socket.io on the same origin. Session cookies authenticate both HTTP routes and the socket handshake, which keeps real-time auth aligned with the rest of the app.

• Receipts that match how people actually read chats

  Direct messages move through sent, delivered and read based on presence and whether the recipient has that chat open. Groups track delivery and read status per member so you can see partial versus full receipts.

• Sessions users can see and revoke

  Each login creates a tracked session with device and location details. Users can revoke individual devices or every other session, which is the kind of control people expect from a real messaging product.

• Keeping delivery and read state correct

  Approach: Receipt rules depend on whether the recipient is online and currently viewing the room. On reconnect, pending sent messages promote to delivered and opening a chat marks delivered messages as read so the sender's receipt status updates in real time. Groups track status per member instead of a single shared state.

  Result: DMs and groups show honest sent, delivered and read states with timestamps instead of a single checkmark that ignores context.

• Keeping login and live chat on the same session

  Approach: Sessions live in HttpOnly cookies and the Socket.io handshake reuses that cookie. Active sessions expose device and location details so users can revoke a forgotten device without logging out everywhere when they need to.

  Result: Real-time events stay tied to a trusted session and access across devices stays visible and controllable.

• Guest mode without leftover data

  Approach: Guest login creates a temporary user with full app access. On logout, the guest account and related rooms, messages and sessions are deleted so demos do not accumulate junk accounts.

  Result: Visitors can explore the product immediately, while the database stays clean after they leave.
